Shape-of-Thought (SoT) reframes rendered object generation as progressive assembly. Instead of producing a final image in one opaque step, SoT generates an interleaved trace of textual assembly decisions and rendered intermediate states, giving the model a visual working memory for structural constraints such as part counts, attributes, connectivity, and topology.

Overview

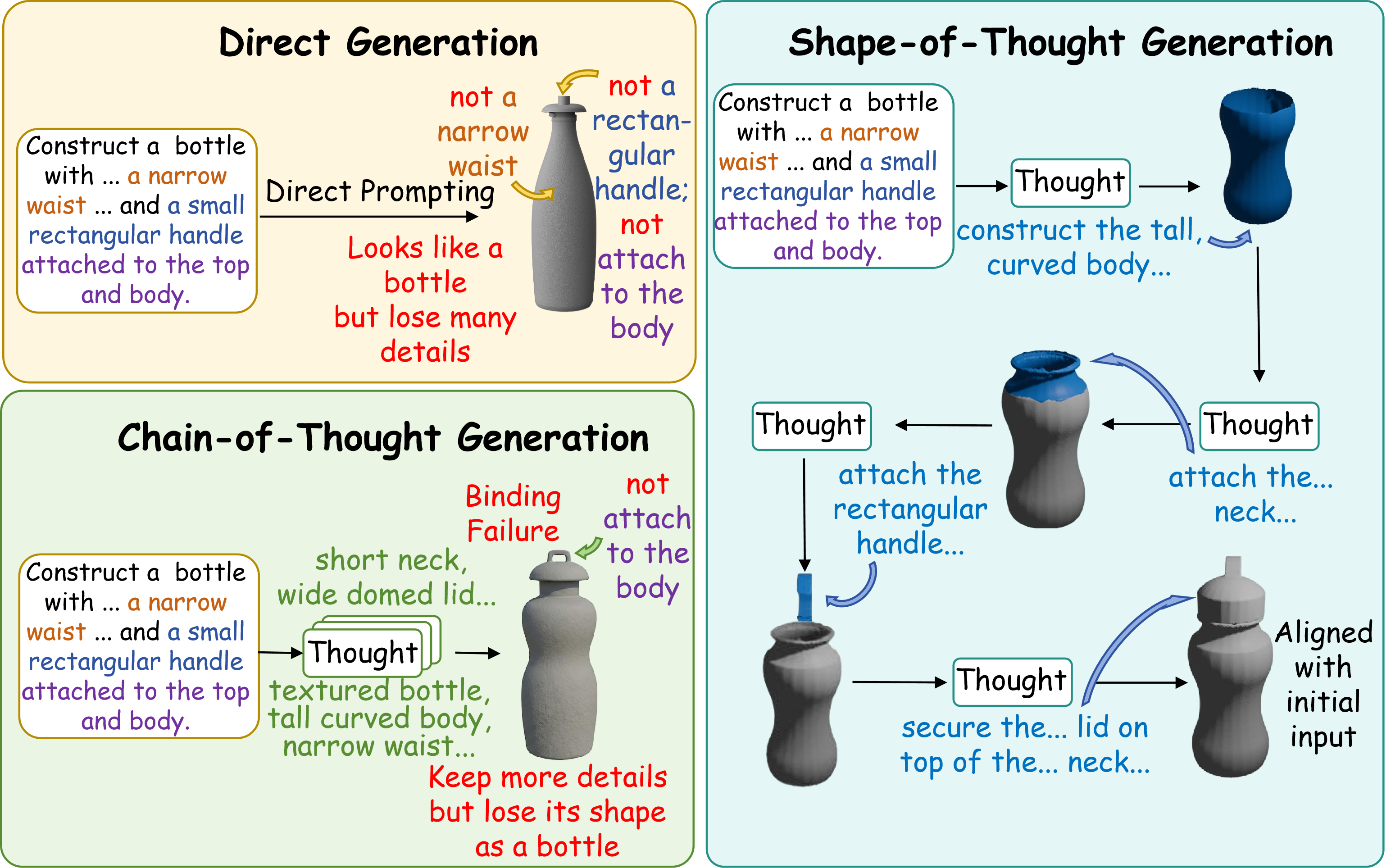

Modern text-to-image and rendered text-to-shape systems can achieve strong visual fidelity, but they remain brittle when a prompt requires precise compositional structure. Models may miss repeated components, bind local attributes incorrectly, or produce plausible silhouettes with broken part-level relations. SoT targets this structural bottleneck by making generation explicit and inspectable: each step predicts a rationale and grounds it in an updated rendered state.

25,929

PartNet-derived assembly traces in SoT-26K.

Object categories spanning furniture, appliances, tools, and everyday objects.

+20%

Approximate gain over text-only baselines on key structural metrics.

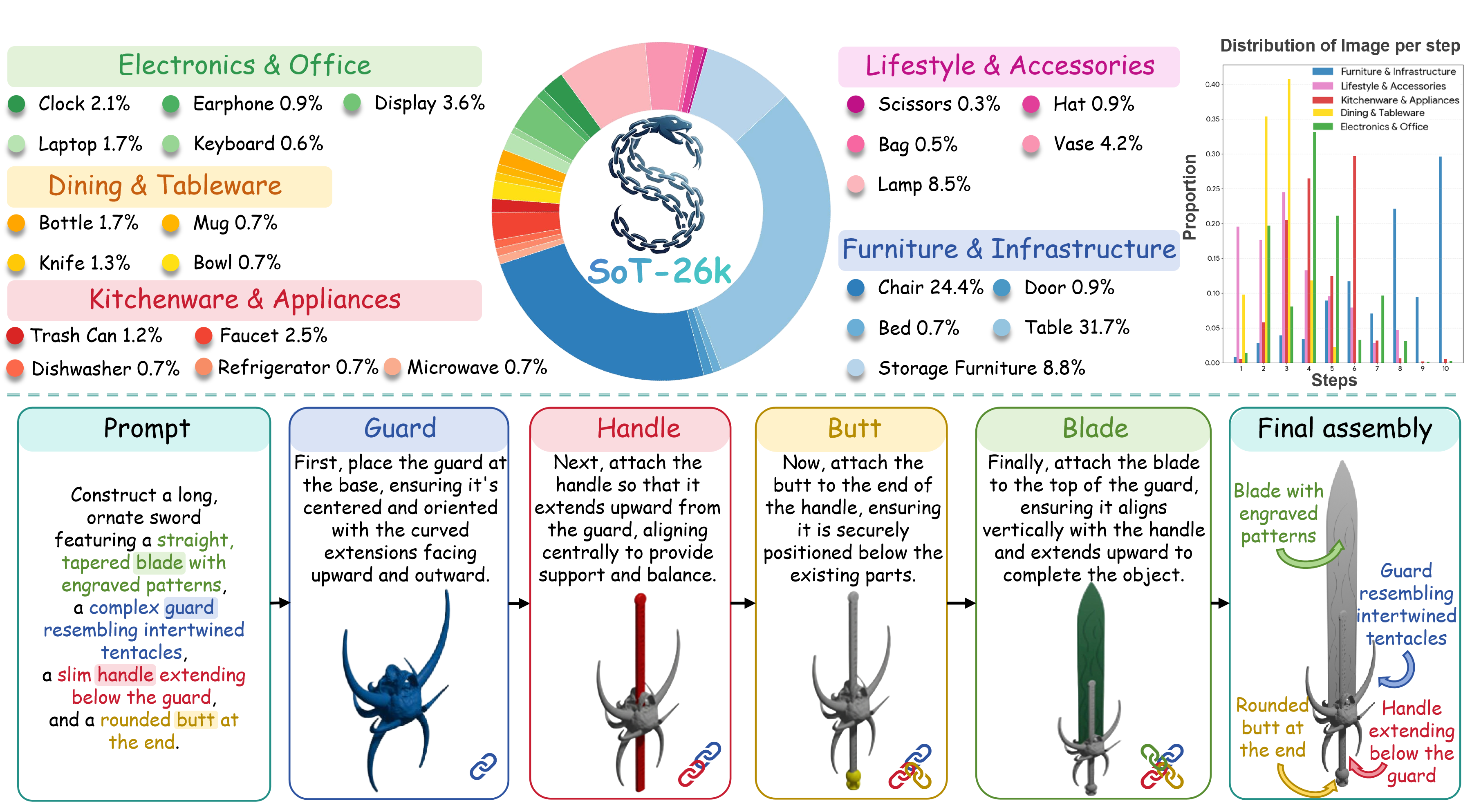

SoT-26K statistics and Shape-of-Thought inference workflow

SoT-26K provides grounded assembly traces, while SoT performs inference as an alternating stream of textual rationales and rendered states.

Method

SoT trains a unified multimodal autoregressive model to operate over interleaved text and image-token blocks. At step n, the model first emits a structural decision, then produces the corresponding rendered intermediate state. The generated state is fed back as visual context for later decisions, allowing the model to maintain step-wise visual grounding.

The system is deliberately rendered-domain first: it does not produce explicit 3D geometry at inference time and does not rely on external engines during decoding. The 3D CAD hierarchy is used offline to construct supervision, while generation itself is an image-space process with transparent intermediate states.

Core idea. Visual Chain-of-Thought is treated as a working memory for shape assembly: textual plans state what should change, rendered states show whether the change has been grounded.

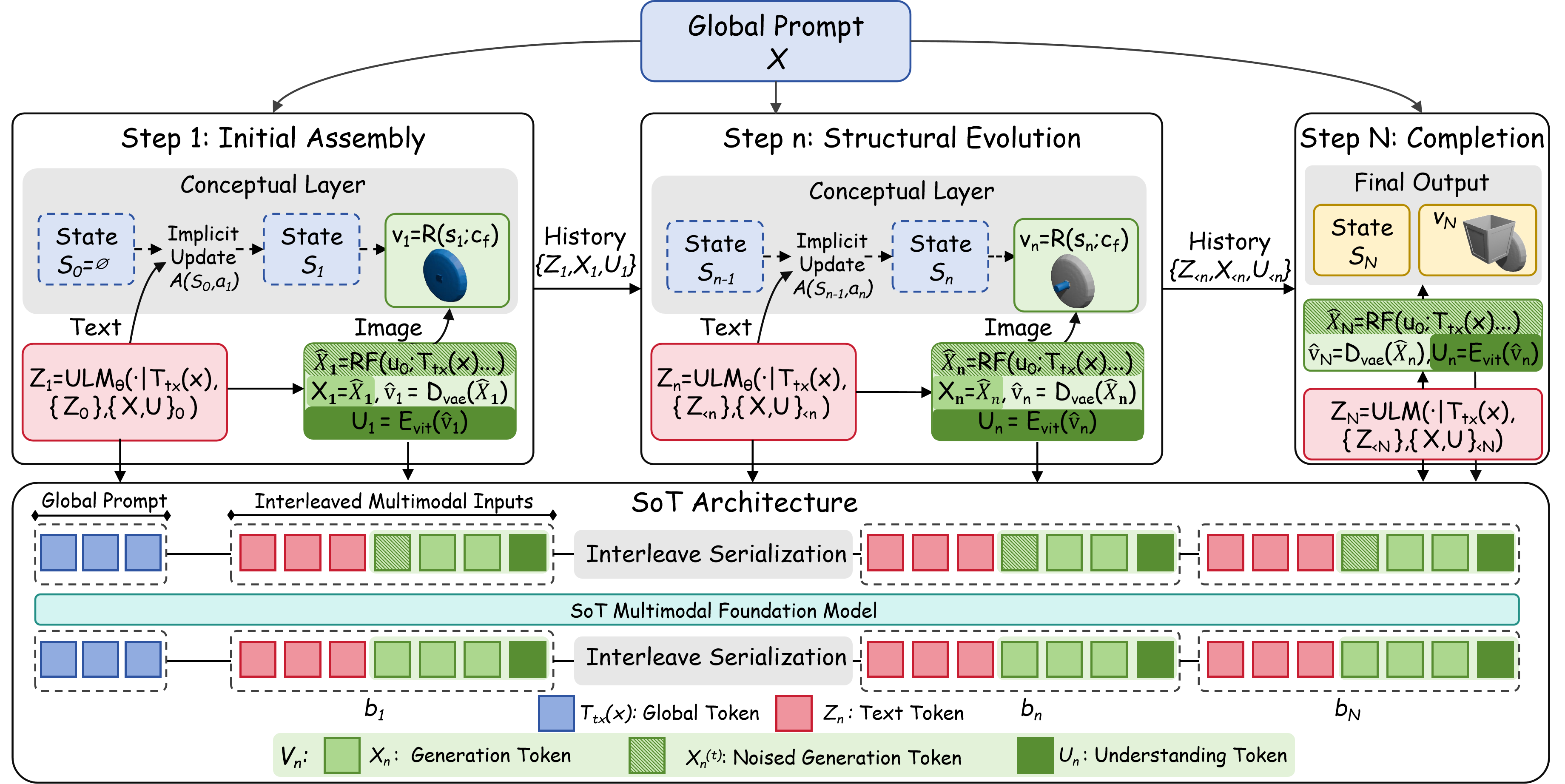

Overview of the Shape-of-Thought framework

The SoT framework progresses from initial assembly to structural evolution and completion through interleaved rationale and visual-state generation.

SoT-26K Dataset

SoT-26K converts part-based CAD assets into step-aligned multimodal traces. The pipeline loads PartNet hierarchies, validates part structure, decomposes an object into an assembly schedule, renders canonical front-view states with auxiliary views, and annotates each step with grounded textual rationale.

Grounded traces

Each sample pairs a goal prompt with a sequence of rationale-and-render updates, ending in a final assembly.

Controlled structure

The dataset isolates compositional properties such as repeated parts, attachment, attributes, and topology.

Efficient release format

The public dataset is packaged for multimodal loading with image and text fields in Parquet format.

SoT-26K construction: CAD hierarchy processing, assembly scheduling, rendering, annotation, validation, and packaging.

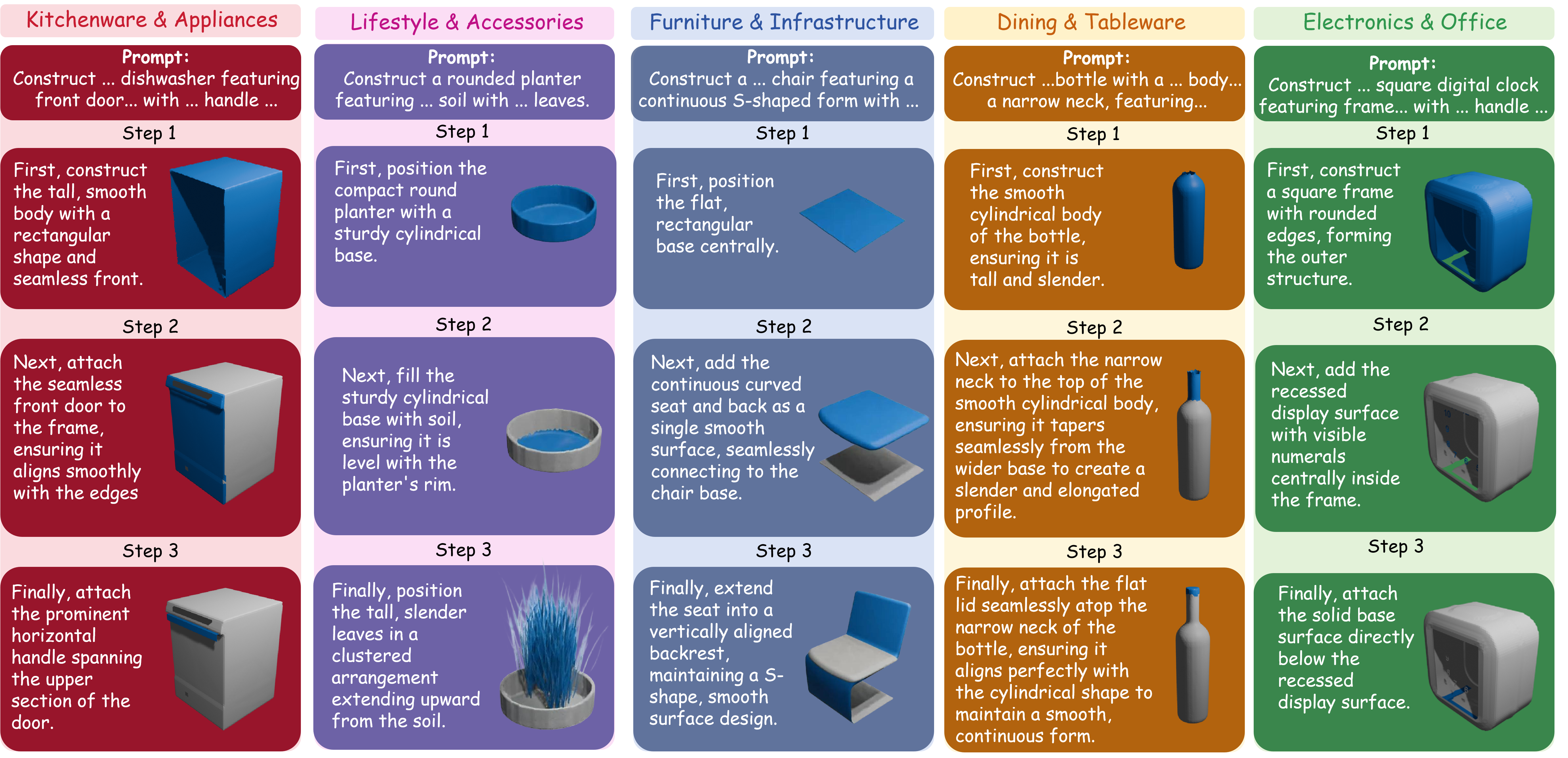

Progressive Shape Assembly Traces

SoT decomposes each goal prompt into sequential construction steps across diverse object categories. At each step, the model produces a structural rationale followed by a grounded visual state, making the generation process explicit and visually traceable.

Interleaved rationales and rendered states make the construction trajectory inspectable.

T2S-CompBench

T2S-CompBench evaluates both final structural compliance and trace faithfulness. Structure metrics audit component numeracy, shape fidelity, attribute binding, connectivity, and visual topology, while process metrics assess rationale alignment and trace stability across generated intermediate states.

Metric family	What it checks	Why it matters
Structure	CN, SF, AF, CP, VT	Whether the final rendering respects counts, attributes, connectivity, and topology.
Process	RA, TS	Whether the generated trace remains faithful and visually stable across steps.
Multi-view extension	Front, left, right, back views	Whether projected structural evidence survives viewpoint changes.

Results

Table below reports the main T2S-CompBench results from the paper. SoT improves structural compliance over direct generation, text-only CoT, and rendered 3D references, with the strongest gains on component numeracy, attribute fidelity, connectivity, and visual topology. RA/TS are only available for methods that generate explicit visual traces.

Method	CN	SF	AF	CP	VT	RA	TS	Human	Latency / s
Bagel-7B	64.26	71.57	58.34	62.14	65.42	--	--	3.12	51.95
Bagel-7B-CoT	75.88	74.23	72.16	68.92	71.38	45.49	32.71	3.65	103.46
Shap-E	42.15	75.38	25.23	21.11	28.59	--	--	1.85	9.92
LGM	68.62	80.15	55.40	72.30	76.50	--	--	3.25	6.48
L3GO	76.20	65.80	68.45	60.10	72.90	--	--	3.05	921.27
Meshy 6	82.74	95.43	75.27	85.60	78.25	--	--	3.91	74.81
Bagel-7B-SoT	88.44	83.62	81.51	86.25	84.76	79.19	91.30	4.08	43.14 / step 257.75 total

CN: Component Numeracy, SF: Shape Fidelity, AF: Attribute Fidelity, CP: Connectivity Plausibility, VT: Visual Topology, RA: Rationale Alignment, TS: Trace Stability. Human score is averaged on a 1--5 scale.

Qualitative Analysis

The paper further compares SoT with representative 2D and rendered-3D baselines across diverse object categories, covering structural failures beyond numeracy.

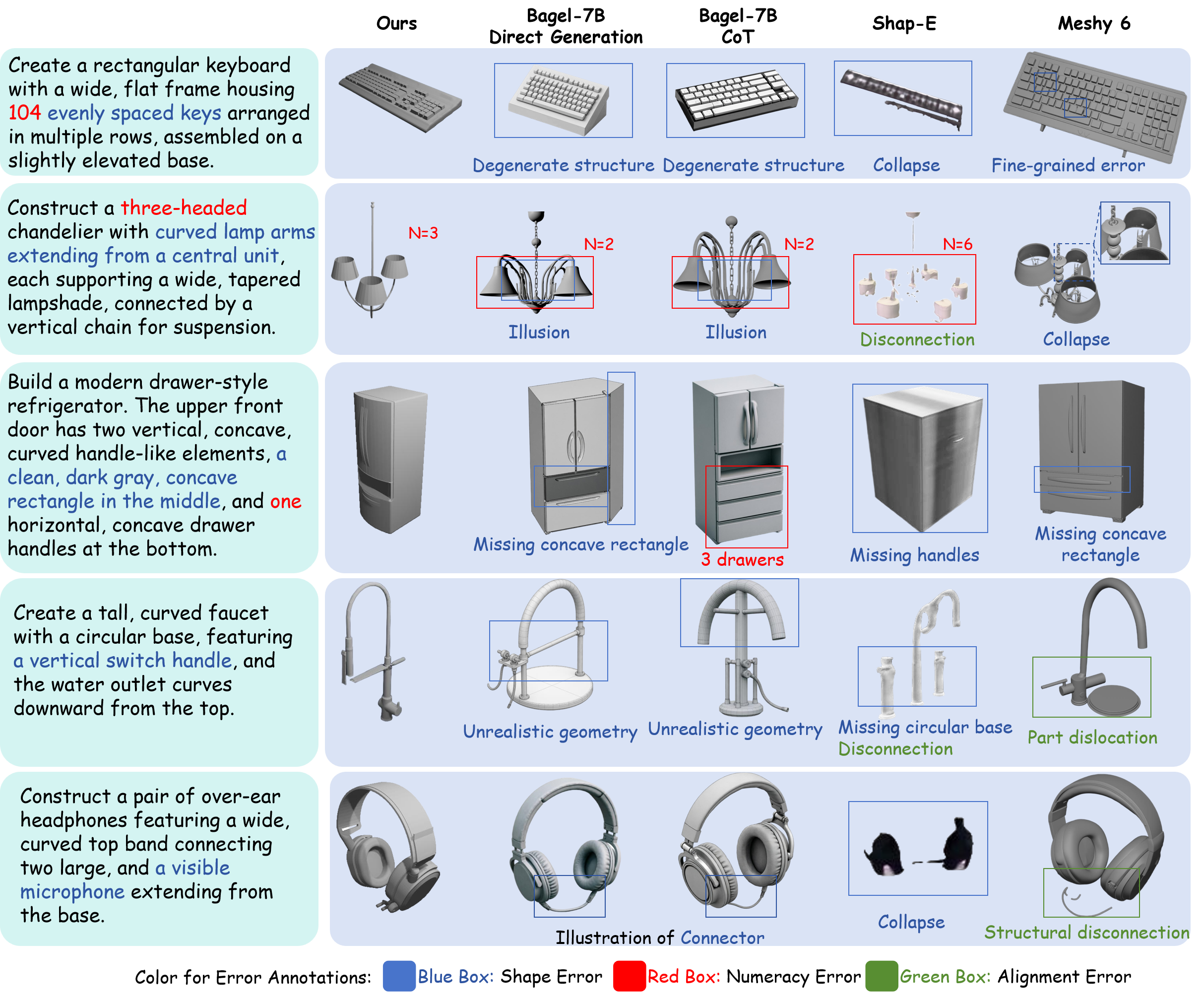

Qualitative structural compliance comparison across baselines and SoT

SoT better preserves component counts, object-level topology, local details, and part connectivity. Blue, red, and green boxes mark shape/detail failures, count mismatches, and connectivity/dislocation errors, respectively.

Examples

Additional examples include rendered-to-3D lifting, category-level traces, and multi-view traces.

Rendered-to-3D Lifting

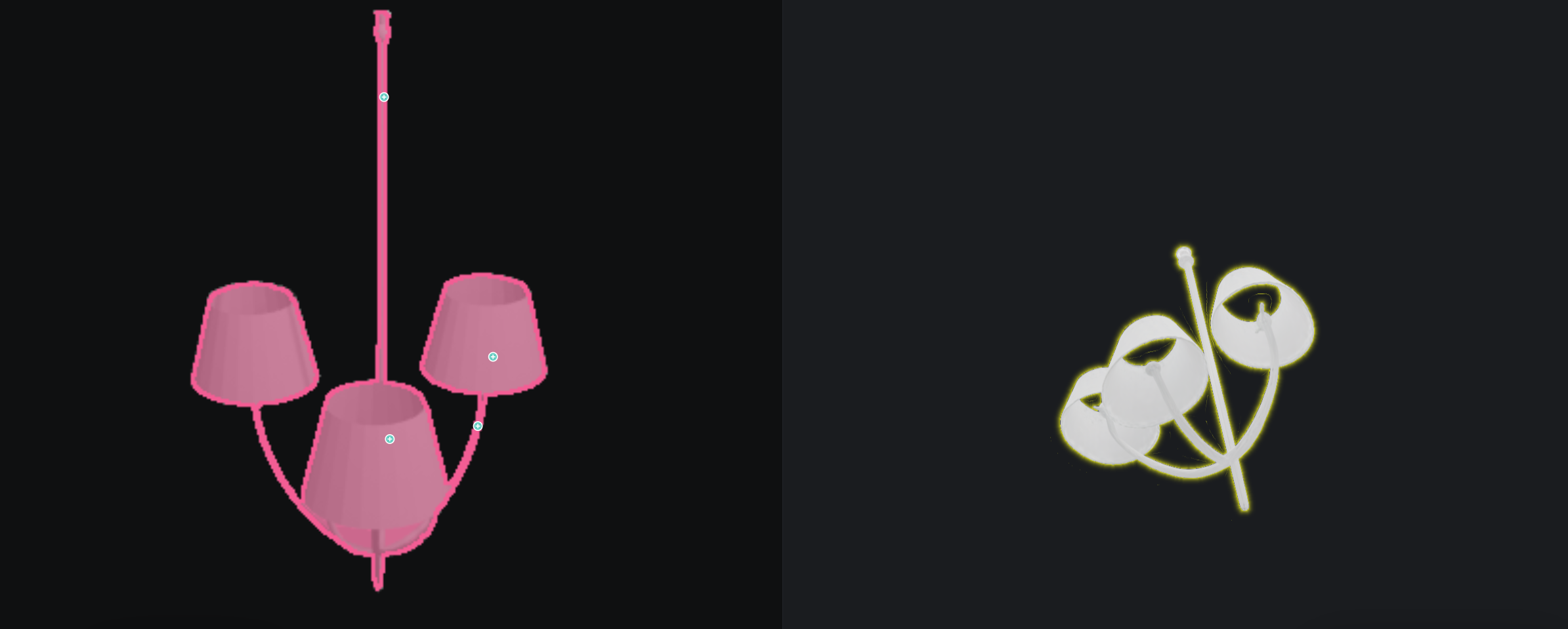

Single example of a SoT rendering lifted into a mesh

Rendered-to-3D case

Clear rendered structures can be consumed by external lifting tools, while native 3D generation remains future work.

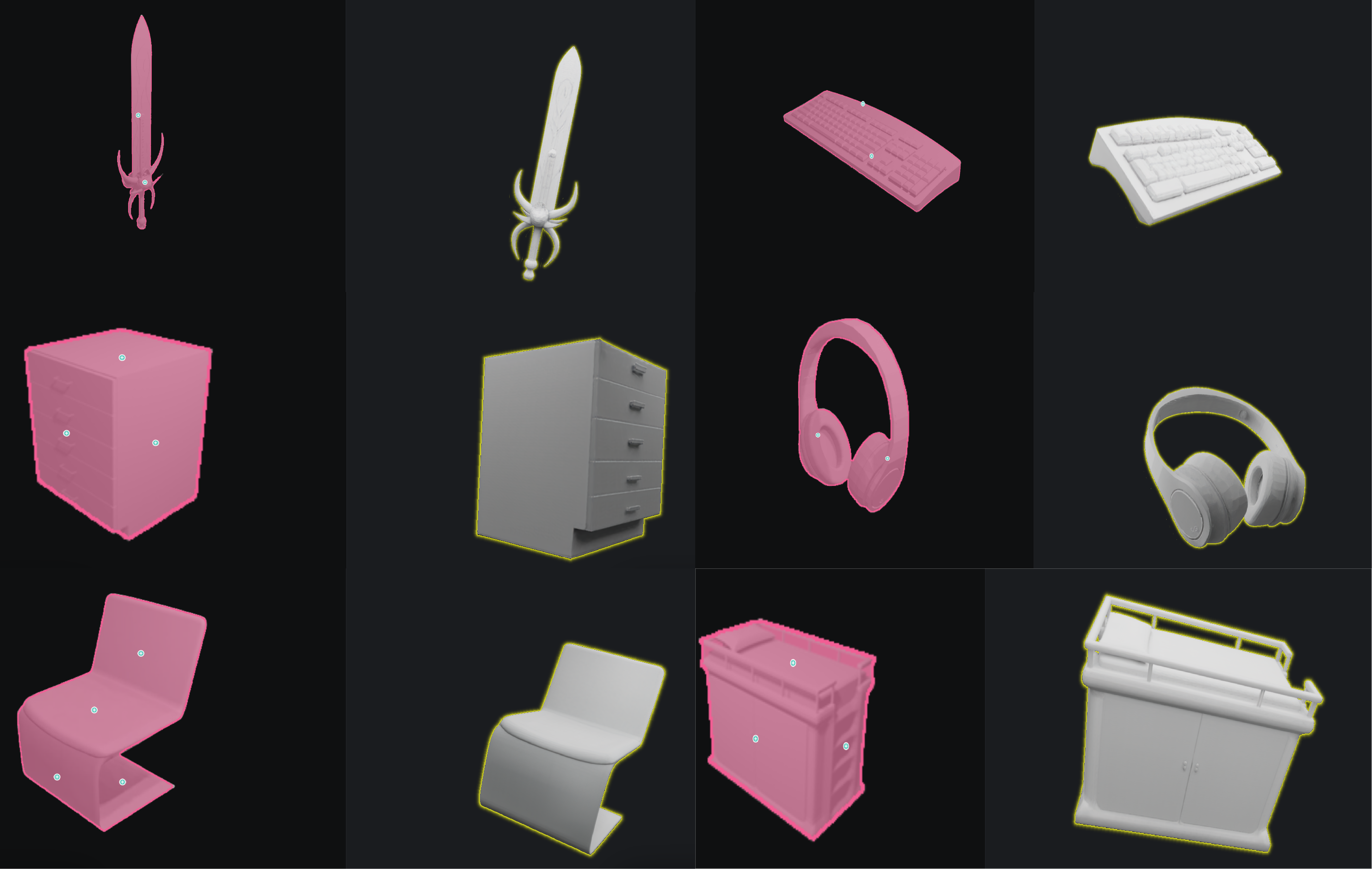

Gallery of SoT renderings lifted into meshes by an external 3D pipeline

Diverse 3D lifting results

Additional external lifting outputs show which rendered object structures transfer most cleanly.

Additional Qualitative Results by Category

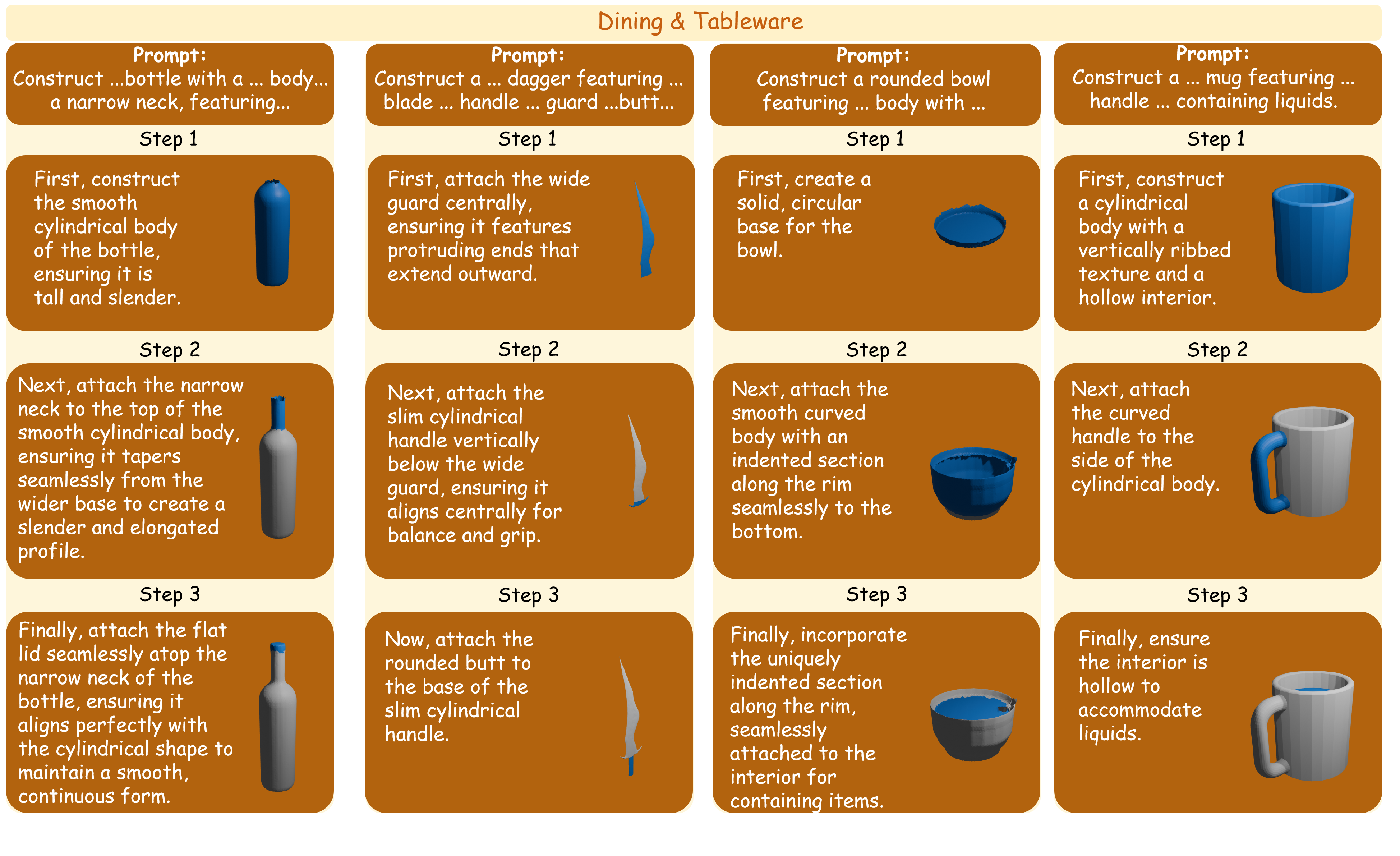

Dining and tableware

Containers, utensils, and table settings with repeated parts and symmetry.

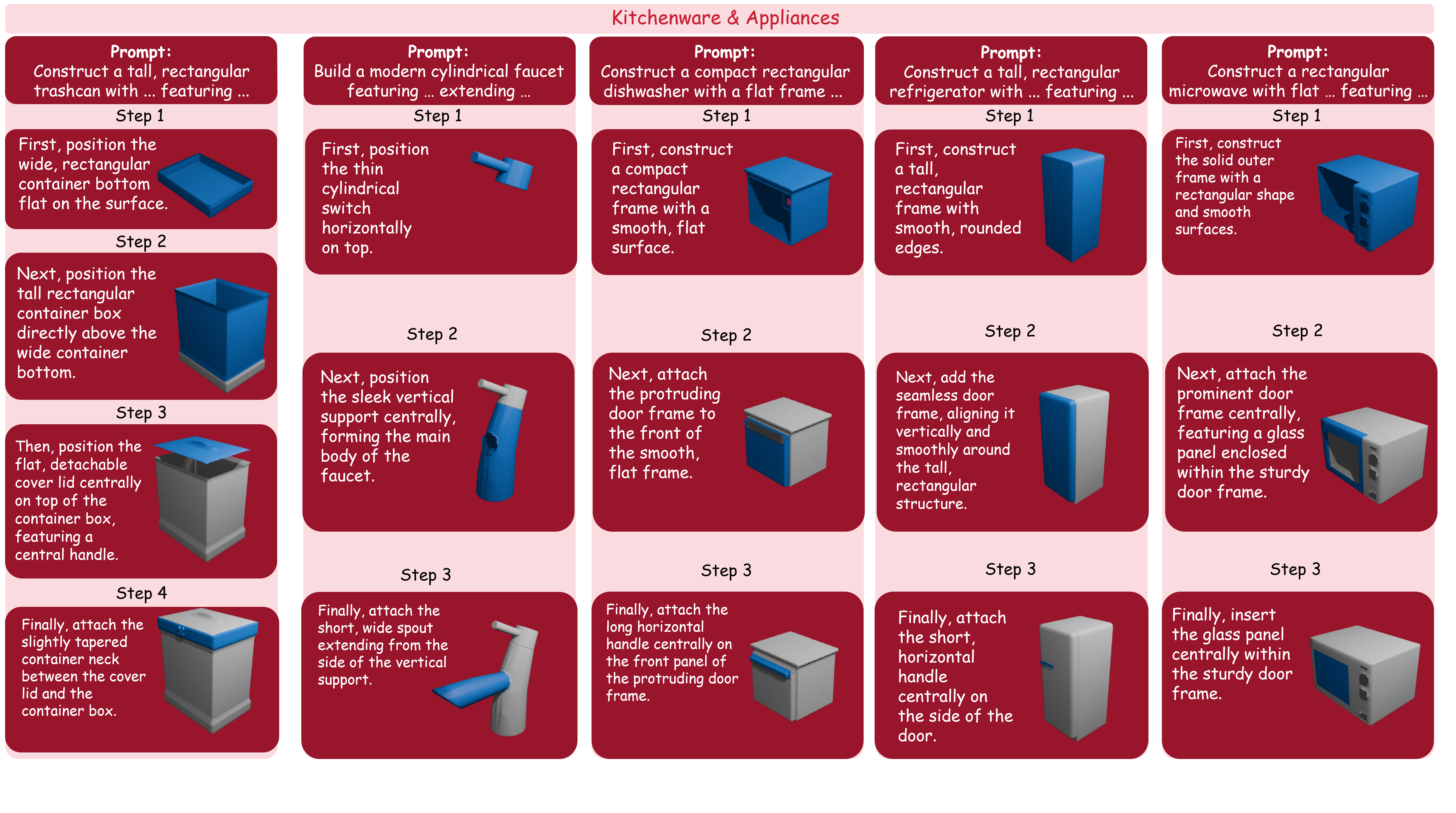

Kitchenware and appliances

Kitchen objects and appliances requiring distinct subparts and functional geometry.

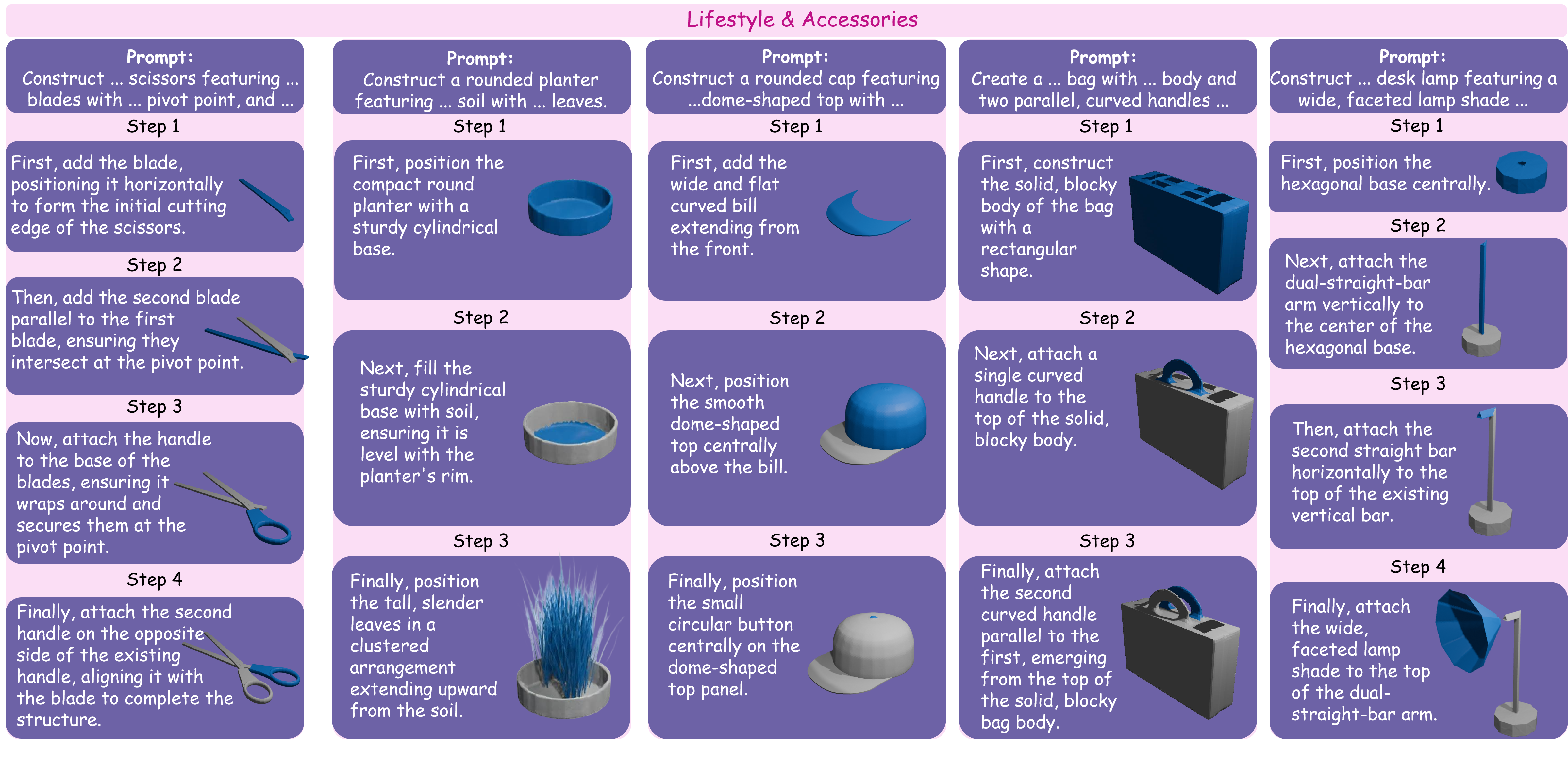

Lifestyle accessories

Everyday accessories that test shape, color, and local attribute control.

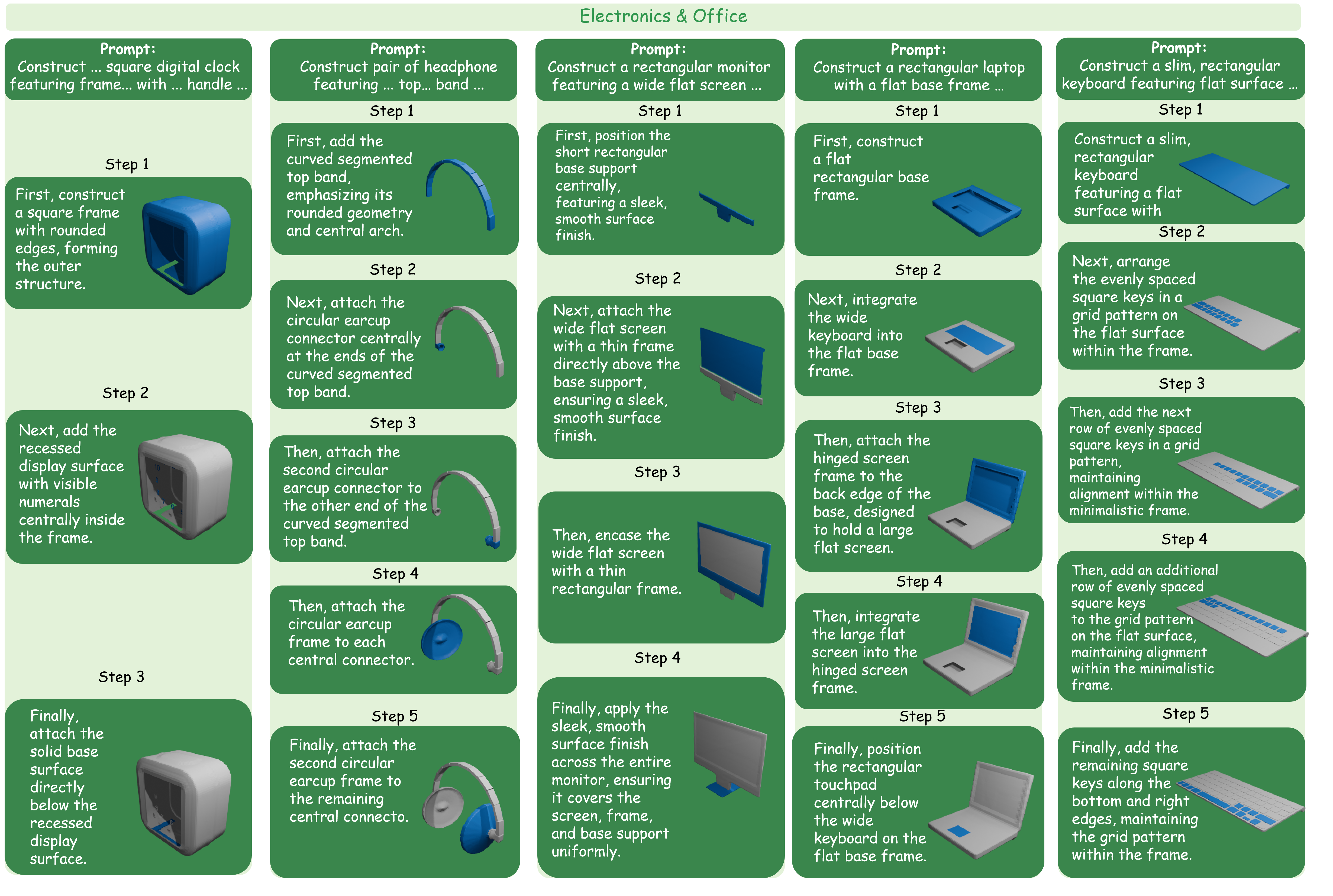

Electronics and office

Devices and workspace objects with small functional components and layout constraints.

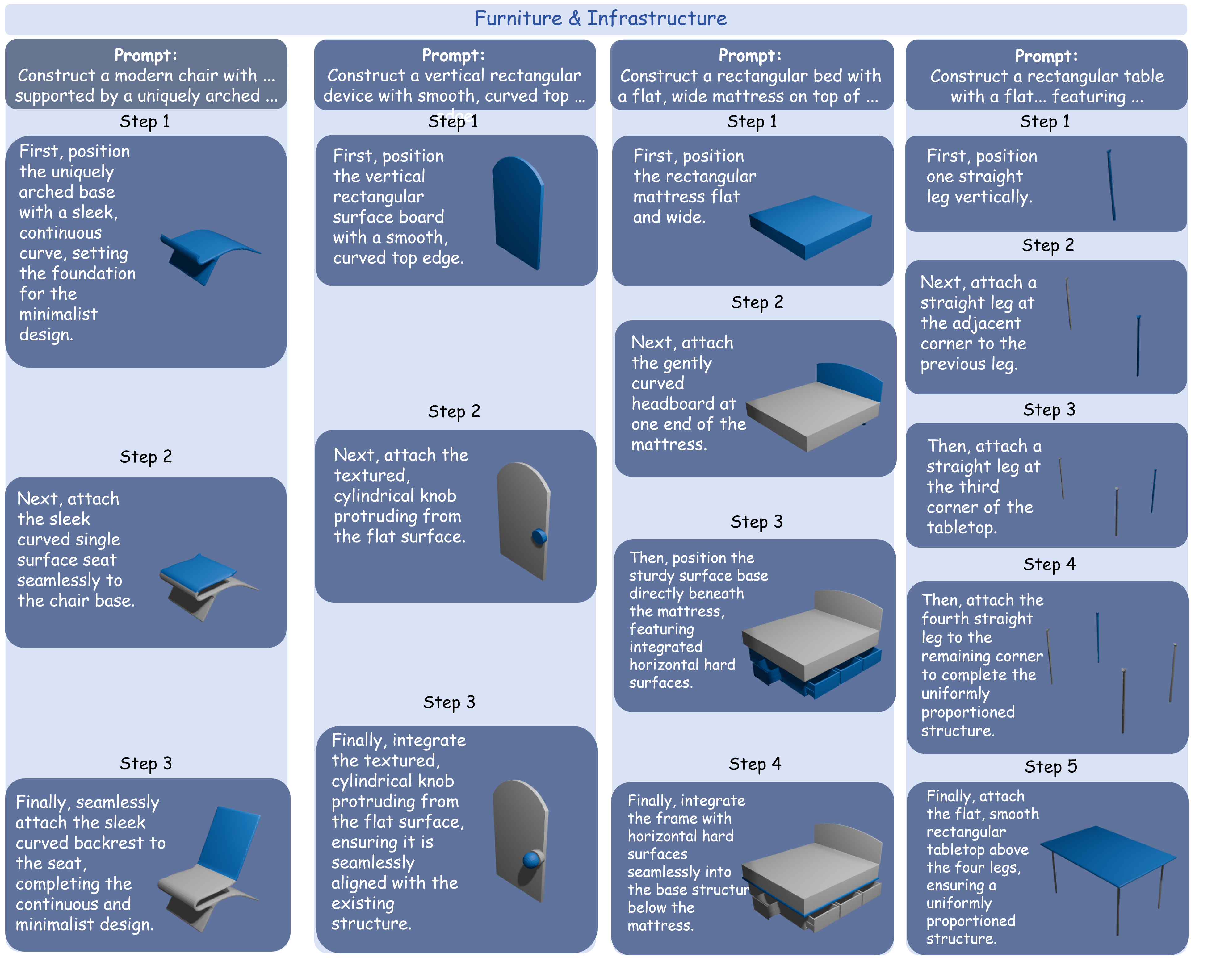

Furniture and infrastructure

Compositional indoor and structural objects with visible part-level assembly.

Multi-view Qualitative Traces

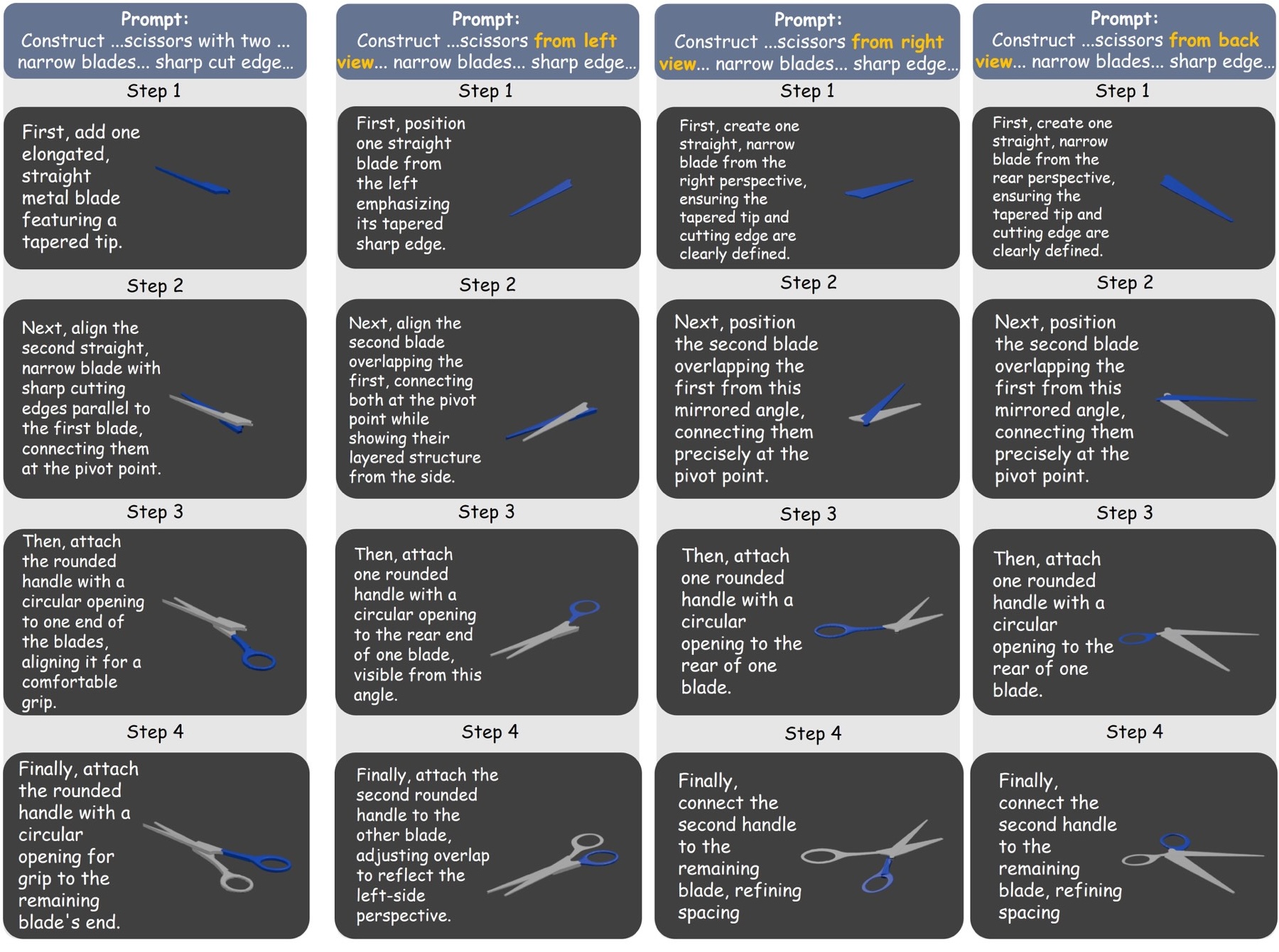

Multi-view example I

Multiple rendered viewpoints expose how part placement evolves across the trace.

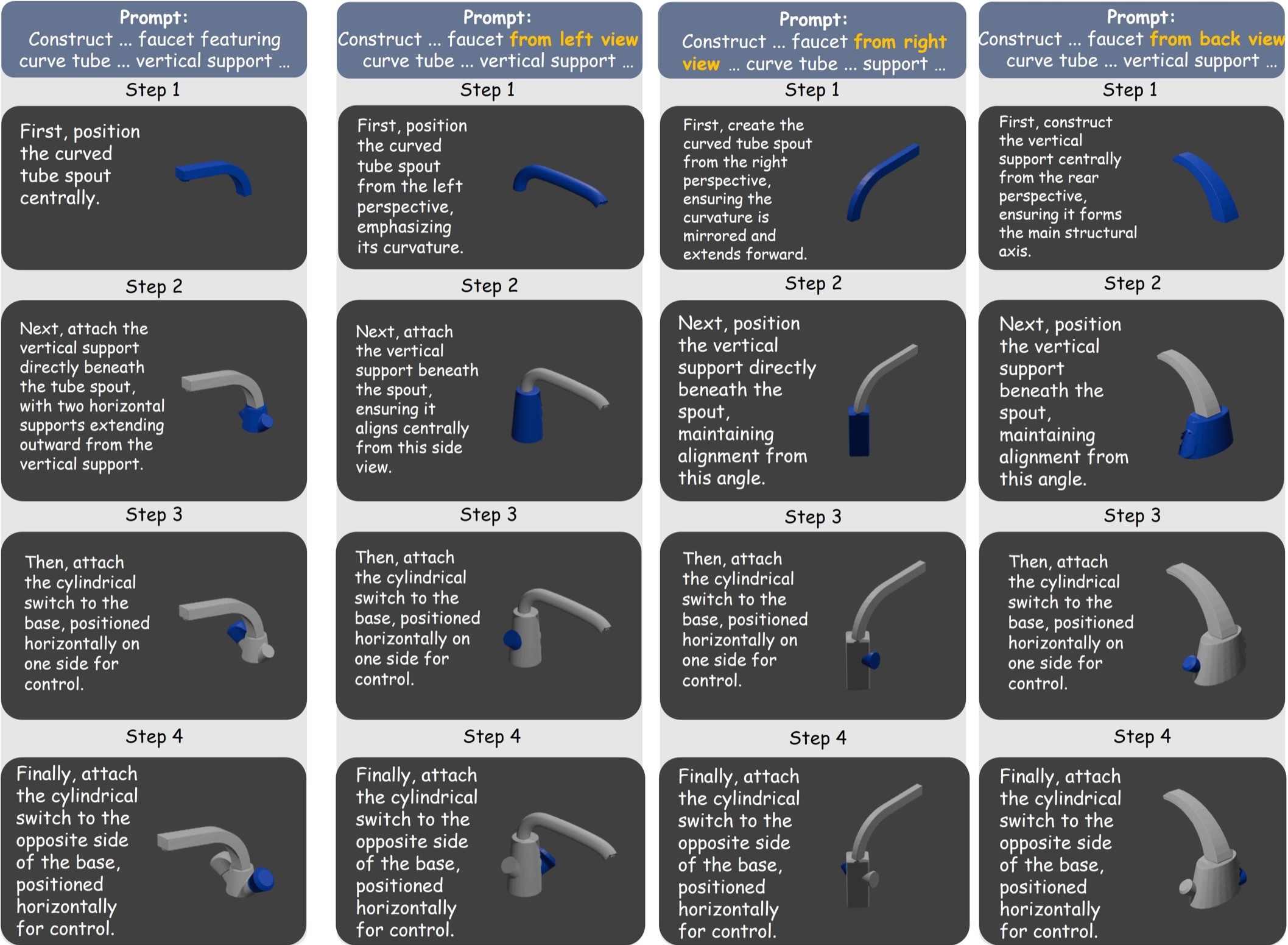

Multi-view example II

A second multi-view case highlights viewpoint-level consistency and remaining variation.
